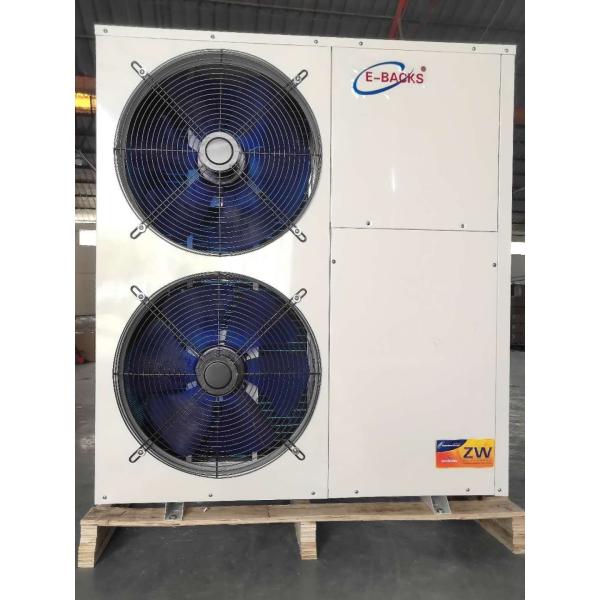

Air to Water Heat Pump
1.10 year's experiences
2.ISO, CCC and CE approval
3.High COP, EER, 75%Energy-Saving
4.Super quiet
Air to Water Heat Pump
1. 10 year's experiences
2. ISO, CCC and CE approval
3. High COP, EER, 75%Energy-Saving
4. R404a is suitable for low ambient temperature
5. Automatical defrosting
6. Automatical high/low pressure protection
7. Super quiet, Safety, Easy installation and operation
8. Can be working at -20°C to 45°C
-
Structure:
1. Condenser of air to water heat pump:
2. Evaporator of air to water heat pump: 3. Electronic expansion valve:
4. Compressor:
5. Control Panel:
-
Our Company
Air to Water Heat Pump parameter table:
| Item(unit) |
ASH18 |
| Rated input power(Kw) |
4.6 |
| Rated heating capacity(Delivered)(Kw) |
18.4 |
| Rated voltage(V) |
380 |
| Rated frequency(Hz) |
50/60 |
| Rated current(A) |
9 |
| Rated outlet water temperature( °C) |
55 |
| Maximum outlet water temperature( °C ) |
60 |
| Water flow(L/H) |
5500 |
| Circulating water pipe diameter(mm) |
Dn25 |
| Circulating water pipe interface |
Soft connection(internal thread) |
| Packing Dimensions(mm) |
1155*465*1320 |
| Super quiet packing Dimensions(mm) |
1270*660*1390 |
| Weight(Kg) |
162 |
| Level of security |
IP×4 |
| Electric shock protection grade |
1 grade |
| Noise(Db) |
≤60 |
| Super quiet Noise(Db) |
≤50 |
| Refrigerant |
R417A/R407C/R404A/R22/R134A |
| Compressor |
Copeland |
| Condenser |
Double pipe heat exchanger |
| Evaporator |
Internal thread copper pipe and
wave hydrophile aluminum foil |
| Fan motor |
Axial flow fan/Centrifugal fan |
| Throttle units |
Electronic expansion valve |
| Control System |
Multi-Control |
Remarks: the test of conditions of above parameter: dry bulb temperature:20°C,
wet bulb temperature:17°C, inlet water temperature:15°C, outlet water temperature:55°C.
-
Surface-design patent certificate.
-
