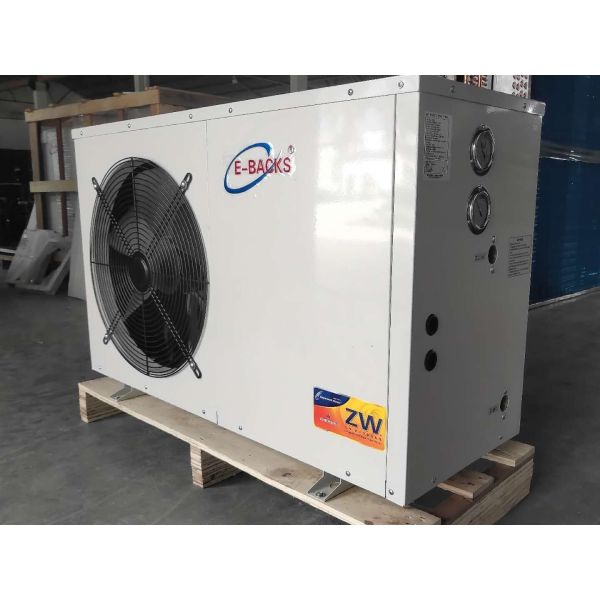

Air To Water Heat Pump water heater
1.Air source heat pump
2.OEM service..
3.ISO, CCC and CE approval
4.Heating and cooling
Air To Water Heat Pump water heater
1.10 year's manufacturer
2.OEM service..
3.ISO,CCC and CE approval
4.High COP, 75%Energy-Saving
5. R404a is suitable for low ambient temperature
6. Automatical defrosting
7. Automatical high/low pressure protection
8. Safety, Easy installation and operation
9. Can be working at -20°C to 45°C
Air to water heat pump
Technology parameters:
| MODEL |
Unit |
ASH12 |
| Rated heating capacity |
KW |
12 |
| Hot water supply |
L/h |
260 |
| Average heating input power |
KW |
2.98 |
| Rated heating input current |
A |
13/6 |
| Max outlet water temp |
C |
60 |
| Power |
V/Hz |
220/50,380V/50 |
| Noise |
Db(a) |
55 |
| Dimension |
W*D*H |
mm |
900*900*1190 |
| Unit weight |
KG |
115 |
| Refrigerant |
- |
R417A/R407C |
| Working air temp range |
- |
(-20C)—45C |
| compressor |
Type |
- |
Copeland |
| Air source heat exchanger |
Type |
- |
Finned heat exchange |
| Fan Type |
- |
axial flow fan |
| Hot water side heat exchange |
Type |
- |
Coil heat exchanger |
| Water flow |
M6/H |
3600L/h |
| Water pressure down |
Kpa |
35 |
| Pipe size |
DN |
25 |
Have been tested and desighed in accordance with Europen standards.
-
Air to water heat pump
Trade term
1> Packing: Standard Export Packing (Ply wooden case), 56 units for per 40" container
2> Pay term: 30% T/T Of Total value as deposit to start the produce, And 70% the balance before shipping
3> Delivery time: within 15 days after receive the deposit
4> Effective date: The price validity is 1 month
5> Warranty: 14 months Since the delivery day
6> Discount will be offered base on one container
7> MOQ=2
High-efficient energy-saving:
1).Heatpump water heater use heat energy from air(including heat recovery and via compressor work produceing more heat energy release to water to achive get hot water .
2).Saving more than 75% energy consumption compared to traditonal heaters.
3).During the work process it will not produce watse, no pollution
4).They delivery fresh air to people to make cool to the air , against air conditioner, let people escap greenhouse
5).They delivery clearn energy to people ,Contributuion significant to fight against CO2 emission
6).Very coordinate with copenhagen conference .Low carbon, low exhaust
Air heat pump uniques:
1).Janpanese Panasonic or American Copeland compressor.
2).Evaporator is larger than usual size to keep its high efficiency.
3).Water pressure reaches 0.6Mpa-0.9Mpa.
4).Full automaticlly start and stop according to setup temperature.
5).LCD touch- screen controller.
